By [def:polyhedral], we have to show that \(V(R)\) can be written as the relative interior of the intersection of a finite collection of closed half-spaces. In particular, \(d(x, r) < d(x, q) \iff \langle x-r, x-r \rangle < \langle x-q, x-q \rangle \iff - 2 \langle x, r \rangle + \lvert \lvert r\lvert \lvert ^2 < - 2 \langle x, q \rangle + \lvert \lvert q\lvert \lvert ^2 \iff \langle x, b \rangle < \beta\), with \(b = q -r, \ \beta = \frac{\lvert \lvert q\lvert \lvert ^2 - \lvert \lvert r\lvert \lvert ^2}{2}\). Therefore, \(x\) must lie in an open half-space of the hyperplane \(H = \{ x \mid \langle x, b \rangle = \beta \}\). We find all necessary hyperplanes by running over all \(r \in R, \ q \in S \setminus R\). For the equality of distance condition, we can express it as the intersection of two closed halfspaces. Finally, note that \(S\) is finite, and the fact that the inequalities are strict corresponds to taking the relative interior. ◻

(\(\Rightarrow\) by contrapositive) Suppose \(r \in \mathrm{int}(\mathrm{conv}(S))\). Let \(v\) be an arbitrary unit vector, and construct the ray \(s(t) = r + tv, \ t \geq 0\). Define the sweeping hyperplane \(\perp\) to \(v\) containing \(s(t)\): \(H_t = \{ x \mid \langle x - s(t), v \rangle = 0 \} = \{ x \mid \langle x - r, v \rangle = t \}\). Since \(S\) is compact and \(r\in \mathrm{int}(\mathrm{conv}(S))\), then \(\exists \max_{q \in S \setminus \{r\}} \langle q - r , v\rangle\). Call this value \(t_M\), so for \(t > t_M\), \(H_t\) will never pass through any other site. Let \(q_M \in S \setminus \{r\}\) achieve such a maximum. Then, \(\lvert \lvert s(t) - q_M\lvert \lvert ^2 = t^2 + \lvert \lvert r-q_M\lvert \lvert ^2 - 2 t t_M \Rightarrow d(s(t), q_M)^2 - d(s(t), r)^2 = d(r,q_M)^2 - 2 t t_M\). Therefore, if \(t > \max(t_M, \frac{d(p, q_M)}{2 t_M}) \Rightarrow d(s(t), q_M) < d(s(t), r) \Rightarrow s(t) \not \in V(\{ r\}) \Rightarrow V(\{r\})\) is bounded. We conclude that if \(V(\{r\})\) is unbounded, \(r \not \in \mathrm{int}(\mathrm{conv}(S)) \Rightarrow r \in \partial \mathrm{conv(S)}\).

(\(\Leftarrow\)) Assume \(r \in \partial \mathrm{conv}(S)\) with \(V(\{ r \}) \neq \emptyset\). Then, by [thm:support_hyp] \(\exists\) a supporting hyperplane touching \(\mathrm{conv}(S)\) only at \(r\) such that \(\mathrm{conv}(S)\) lies entirely in one of the corresponding half-spaces. Take its normal outward direction \(v\), and define the ray \(s(t) = r + t v, \ t \geq 0\). Then, \(d(r, s(t)) < d(q, s(t)) \ \forall t \geq 0, q \in S \setminus \{ r\}\). Thus, \(s(t) \in V(\{ r \}) \ \forall t \geq 0\), and since \(s(t)\) is unbounded, \(V(\{ r \})\) must also be unbounded. ◻

We first show that the Voronoi cells are pairwise disjoint. Let \(R, R' \subset S, R \neq R'\). Assume \(V(R) \cap V(R') \neq \emptyset\). Take \(x \in V(R) \cap V(R')\). Since \(x \in V(R)\), \(d(x, r) < d(x, r')\ \forall r \in R, r' \in R'\). However, we must also have \(d(x, r') < d(x, r)\ \forall r' \in R', r \in R\), which is a contradiction. Therefore, \(V(R) \cap V(R') = \emptyset\) and the Voronoi cells are all pairwise disjoint.
We now wish to show that every face of every cell of \(V_S\) is also in \(V_S\). Take \(V(R)\) for some \(R \subset S\). Any face of \(V(R)\) corresponds to the set obtained by tightening some of the inequalities \(d(x,r) < d(x,q) \rightarrow d(x,r) = d(x,q)\) \(\forall r \in R\) for some \(q \in S \setminus R\). Therefore, such a face corresponds to \(V(R \cup q)\) for some \(q = \{q_1, \ldots, q_k\} \subset S \setminus R\), so it must also belong to \(V_S\).
To see that it partitions \(\mathbb{R}^n\), we show that \(\forall x \in \mathbb{R}^n\), \(x \in V(R)\) for some \(R \subset S\). It suffices to find the site \(r \in R\) that is closest to \(x\), and by definition \(x \in V(\{r\})\). If \(x\) is equidistant to more than one site, gather them in a set \(\{r_1, \ldots, r_k\}\) and then again \(x \in V(\{ r_1, \ldots, r_k\})\). ◻

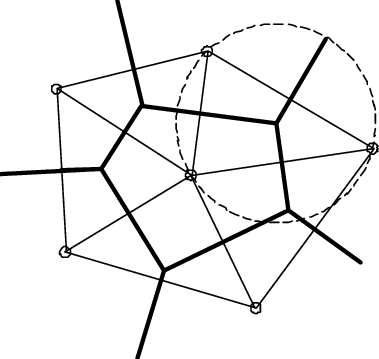

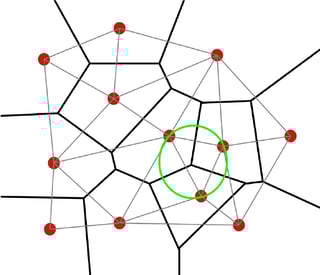

\((\Rightarrow)\) Assume \(D(R)\) is a Delaunay cell, so \(V(R) \neq \emptyset\). Take \(x \in V(R)\). Then \(d(x, r_i) = d(x, r_j) \ \forall r_i, r_j \in R\). Construct the hypersphere centred at \(x\) with radius \(d(x, r_i)\). This is a circumscribed hypersphere of \(R\), since all sites of \(R\) belong to it. By the second property of \(V(R)\), \(d(x, r_k) < d(x, r_l), \forall r_k \in R, r_l \in S \setminus R\), so all sites of \(S \setminus R\) lie in its exterior.

\((\Leftarrow)\) Conversely, assume \(\exists\) such a hypersphere of \(R\). By definition, its center belongs to \(V(R) \Rightarrow V(R) \neq \emptyset\), so \(D(R)\) is well defined. ◻

1. We first prove that Delaunay cells are pairwise disjoint. Consider \(R, R' \subset S, \ R \neq R'\), having well defined Delaunay cells. If \(R' \subset R\), then \(\mathrm{conv}(R')\) is a face of \(\mathrm{conv}(R)\), and their relative interiors must be disjoint by [cor:face_ri]. If \(R \cap R' \neq \emptyset\) but \(R' \not\subset R\) and \(R \not \subset R'\), we can construct a hyperplane intersecting \(R \cap R'\) separating (non-strictly) \(D(R)\) and \(D(R')\) ([thm:hyperplane_sep]). Finally, if \(R \cap R' = \emptyset\), consider the corresponding circumscribed hyperspheres \(C, C'\) satisfying the empty sphere property, and we have two cases. If \(C \cap C' = \emptyset \Rightarrow D(R) \cap D(R') = \emptyset\). Otherwise, construct a hyperplane passing through \(C \cap C'\) strictly separating \(R\) and \(R'\).

2. We now show that every face of a Delaunay cell \(D(R)\) is also a Delaunay cell. Any face of \(D(R)\), different from \(D(R)\) itself, is precisely \(\mathrm{cell}(R')\) with \(R' = R \cap H\) for some hyperplane \(H\) supporting \(\mathrm{conv}(R)\). An empty circumscribed sphere to \(R\) can be slightly perturbed to be an empty circumscribed sphere of \(R'\), so \(\mathrm{cell}(R')\) is also a Delaunay cell by [lemma:circum_sph].

3. Thus far we have proved that \(D_S\) is a cell complex. We now show that \(\mathrm{conv}(S) = \bigcup_{R \subset S} D(R)\). Consider \(x \in \mathrm{conv}(S)\). By Carathéodory’s theorem [thm:caratheodory], \(\exists R \subset S\) such that \(x \in \mathrm{conv}(R)\) with \(\lvert R\lvert \leq n+1\). Take \(R\) as the minimal such set, that is, the one with the least elements s.t. \(x \in \mathrm{ri}(\mathrm{conv}(R))\). (a) If \(\lvert R\lvert = n+1\), then \(\exists ! C\) circumscribed hypersphere to \(R\). If \(\exists q \in S \setminus R\) that lies inside \(C\), we can replace a point of \(R\) by \(q\), such that \(x\) is still in its convex hull but the hypersphere is smaller. Repeat until there is no such point inside \(C\), so by [lemma:circum_sph], \(x \in D(R)\). (b) If \(\lvert R\lvert < n+1\), a similar construction is done on \(\mathrm{aff}(R)\), resulting in a Delaunay cell of smaller dimension. Therefore, \(\mathrm{conv}(S) \subset \bigcup_{R \subset S} D(R)\). Note that \(\bigcup_{R \subset S} D(R) \subset \mathrm{conv}(S)\) is true by definition.

4. As shown, every face of every cell must belong to \(D_S\), in particular 0-dimensional faces which correspond to the vertices in \(S\). Conversely, assume that there exists a point \(p \in S\) that is not a vertex in \(D_S\). Thus, it must lie strictly inside some \(D(R)\subset D_S\), violating the empty sphere condition and resulting in a contradiction. Therefore, the vertices of \(D_S\) are precisely \(S\).

 ◻

(\(\Rightarrow\)) If a triangulation is Delaunay, then by the empty sphere property, all \(n\)-cells must be locally Delaunay. (\(\Leftarrow\)) Select an \(n\)-cell \(D(R)\). We will prove that any \(s \in S \setminus R\) lies outside of the circumscribed hypersphere of \(R\). Select \(r \in \mathrm{int}(\mathrm{conv}(R)) = D(R)\) such that the line segment \(\overline{rs}\) avoids all \(k\)-cells for \(k \leq n-2\) and intersects \((n-1)\)-cells transversally. We may always find such an \(r\) since the triangulation is finite and the set of “bad” directions is a finite union of lower-dimensional subsets of the unit sphere of measure zero. This generates a sequence \(N_0, F_1, N_1, \ldots, F_k, N_k\) where \(N_i\) are the \(n\)-cells and \(F_i\) the \((n-1)\)-cells (facets) that \(\overline{rs}\) intersects until it arrives to \(s\). Denote by \(C_i\) the circumscribed hypersphere of \(N_i\). We will do an inverse induction on \(i = k, \ldots, 0\). For the base case consider \(N_k\), note that there is a hyperplane passing through \(F_k\) separating \(s\) from \(N_{k-1}\) and \(s\) must lie outside of \(C_{k-1}\) (locally Delaunay). The induction hypothesis is that \(s\) lies outside of \(C_i\). Now, consider \(N_{i-1}\). The hyperplane passing through \(F_i\) separates the only vertex of \(N_i\) not shared by \(N_{i-1}\), and it must lie outside of \(C_{i-1}\) (locally Delaunay). Since the intersection of \(\overline{rs}\) with \(F_{i}\) is transversal, \(s\) must also lie on the same side of the plane, and by the induction hypothesis, it must also be outside of \(C_{i-1}\). Thus, we have proved that \(s \not \in C_0\), so all sites \(s \in S \setminus R\) are outside the circumscribed hypersphere of \(R\). ◻

Suppose \(V(R), V(R')\) are distinct Voronoi cells, so \(D(R), D(R')\) are distinct Delaunay cells. Then, \(V(R')\) is a face of \(V(R)\) \(\iff\) some of the inequalities defining \(V(R)\) are tightened to equalities \(\iff R' = R \cup q\) for some \(q \subset S \setminus R\) \(\iff R = R' \cap H\) for some hyperplane \(H\) containing \(q\) that supports the convex hull of \(R'\) \(\iff D(R)\) is a face of \(D(R')\). ◻

Note \(V(R)\) is a relatively open subset of the affine set \(M = \{ x \mid d(x, r_i) = d(x, r_j) \ \forall r_i, r_j \in R\}\), so \(dim(V(R)) = dim(M)\). Note \(d(x, r_i) = d(x, r_j) \ \forall r_i, r_j \in R \iff \langle x, r_i - r_1 \rangle = \frac{1}{2}( \lvert \lvert r_i\lvert \lvert ^2 - \lvert \lvert r_1\lvert \lvert ^2) \ \forall r_i \neq r_1 \in R\), so \(x\) is the solution set to the system \(\mathbf{A} x = b\), with \(\mathbf{A}\) having \(r_i - r_1\) as columns. Then, \(\mathrm{dim}(M) = n - \mathrm{rank}(\mathbf{A})\). Note that by definition ([def:conv_dim]) \(\mathrm{dim}(\mathrm{conv}(R)) = \mathrm{dim}(\mathrm{aff}(R))\), and as developed in [sec:affine], \(\mathrm{dim}(\mathrm{aff}(R)) = \mathrm{dim}(\mathrm{span}(\{ r_2-r_1, \ldots, r_m-r_1\})) = \mathrm{rank}(\mathbf{A})\). ◻

Note that \(\mathrm{dim}(D(R)) = \mathrm{dim}(\mathrm{conv}(R)) = \mathrm{dim}(\mathrm{aff}((R)) \leq \lvert R\lvert - 1\) (see [sec:affine]) and use [prop:dim_voronoi]. ◻

Note that \(\mathrm{dim}(D(R)) = \mathrm{dim}(\mathrm{ri}(\mathrm{conv}(R))) = \mathrm{dim}(\mathrm{conv}(R))\) and simply use [prop:dim_voronoi]. ◻

For \(\lvert R\lvert = 1\), the condition \(\mathrm{dim}(V(R)) > n - \lvert R\lvert + 1 = n\) can never be satisfied, since the maximum dimension is \(n\). For \(\lvert R\lvert = 2\), \(R = \{ r_1, r_2\}\). If \(V(R) \neq \emptyset\), \(V(R)\) must be a relatively open subset of the 1-dimensional affine space \(d(x, r_1) = d(x, r_2)\), so \(\mathrm{dim}(V(R)) \leq 1\). In fact, \(\mathrm{dim}(V(R)) \leq \min \{n-1, 1\}\) (if \(n=1\), then \(V(\{r_1, r_2\})\) must be a single point), so \(\mathrm{dim}(V(R)) \not > n - 1\). For \(\lvert R\lvert = 3\), note that the sites cannot lie in a line and in a hypersphere simultenously, so degeneracy is not possible. ◻
